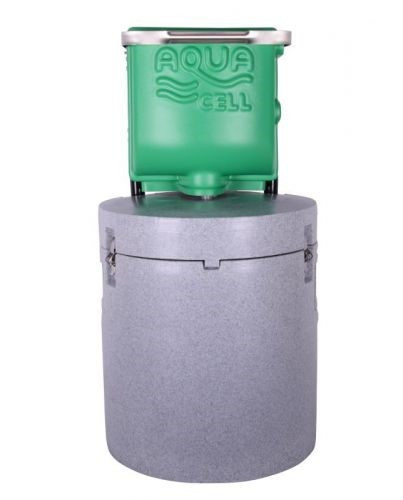

Aqua COOLBOX - Portable Water Sampler

MODEL: AQUA-COOLBOX

Incorporated within the AQUA-COOLBOX is a high performance passive Sample Temperature Control System. This ensures that the collected samples are preserved at an optimal temperature 32°F (0°C) to 41°F (5°C) up to five days, while awaiting collection / inspection. This is particularly useful when sampling biologically active wastewater

The AQUA-COOLBOX is designed typically to operate at sites where the sampling requirement is infrequent or there is simply no power available.

Thick wall insulation combined with sealed ‘no mess’ Cooling Elements provides for impressive sample temperature control performance.

The passive temperature control system requires no power, therefore maximizing on-board battery life. Sample temperatures can be measured and logged for subsequent download.

• Supplied complete with easy clean 5 liter HDPE composite Sample Container with lid and 2 Cooling Elements
• Suitable for indoor and outdoor use
• AC Power and / or Battery powered
• Separately lockable Sampler Cover and COOLBOX base

350+ samples achievable with a fully charged battery AQUA-COMPACT with Integral Battery – Including 12V 7Ah Lead Acid Battery + battery charger

About the ECD family of portable water samplers, contact ECD for questions on other configurations and product models.

Models: AQUA-COMPACT, AQUA-COOLBOX, AQUA-MULTIX

The ECD Analyzers Portable Wastewater Sampler range is made up of three models: The very small AQUA-COMPACT, the passively cooled AQUA-COOLBOX, and the versatile multi bottle AQUA-MULTIX, providing complete sampling flexibility. All can be powered by 110/220 VAC POWER, or an external 12VDC supply, or via an integral battery that can provide up to 350 samples on a full charge.

 The air pump vacuum sampling system featured within every AQUA Module provides for a reliable, representative and repeatable sample without the weaknesses that can be associated with alternative sampling techniques. Programming set-up is very simple, with sample volumes from 50-500 mL (and above, using multiple shots/sample events) and sample intervals from 1 minute to almost 100 hours.

Sample extraction frequency can be time based or triggered by external sources such as flow meters, level sensors, pH meters, on-line analyzers, PLC’s etc. Ambient working temperature range: 14°F (-10°C) to 122°F (50°C). Also, any of the Samplers can be supplied with a Sample Temperature Monitoring Facility. With this option, the minimum, maximum, average and present sample temperatures can by monitored on the display. Additionally all the Portable Samplers can be fitted with a Data Connection facility. This enables the download of logged sample temperature data from the Sampler Module to a PC (or similar) via the USB connection, and if needed, it is possible to extract samples from a pressurized effluent source, using the Pressurized Pipeline Interface.
