Peracetic Acid Analyzer - PA80

• Panel Mounted System Plumb and Play Design
• Multiple PAA ranges, 0-20, 0-200 ppm
• Automatic Flow Control
• T80 Transmitter Capability
• pH measurement for added process information

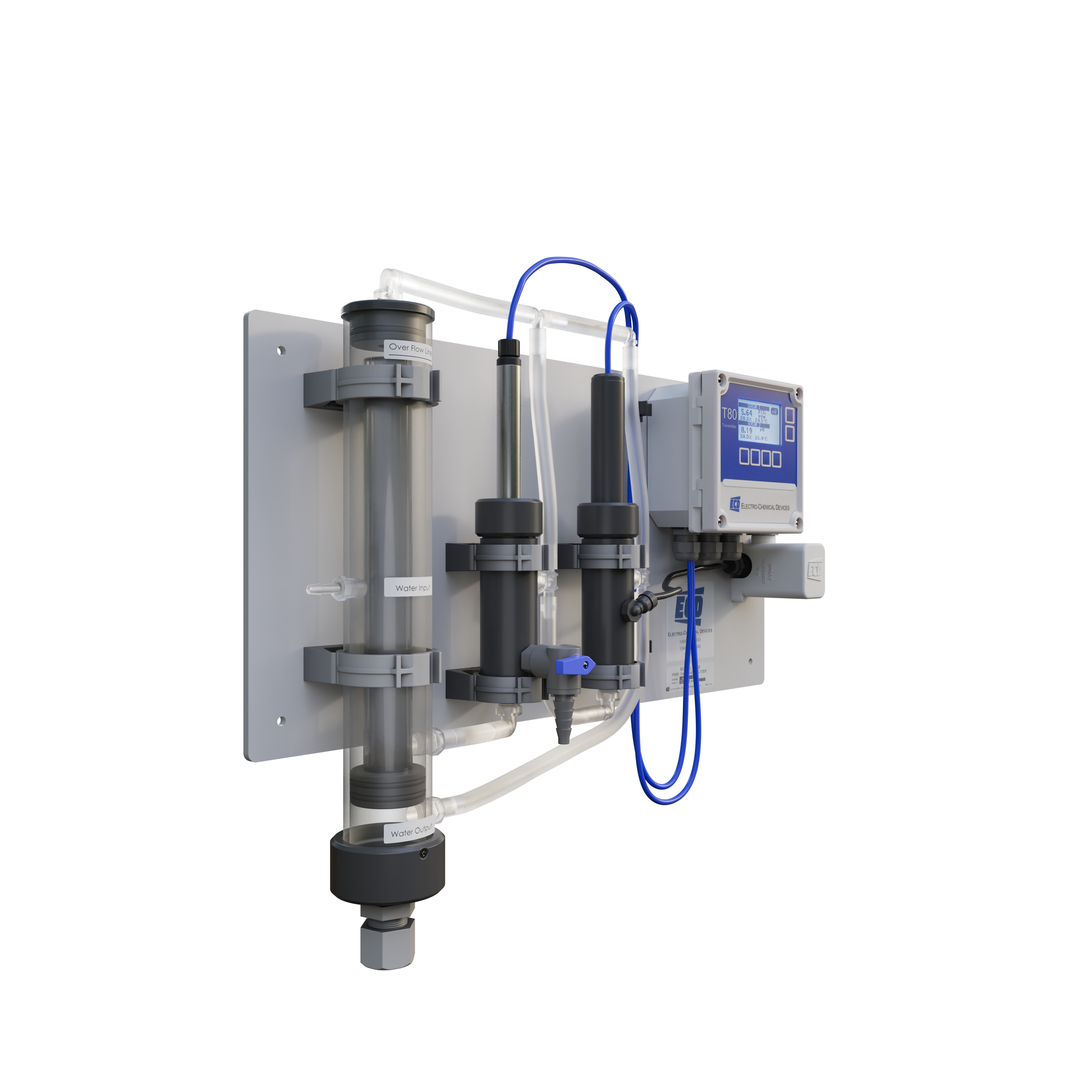

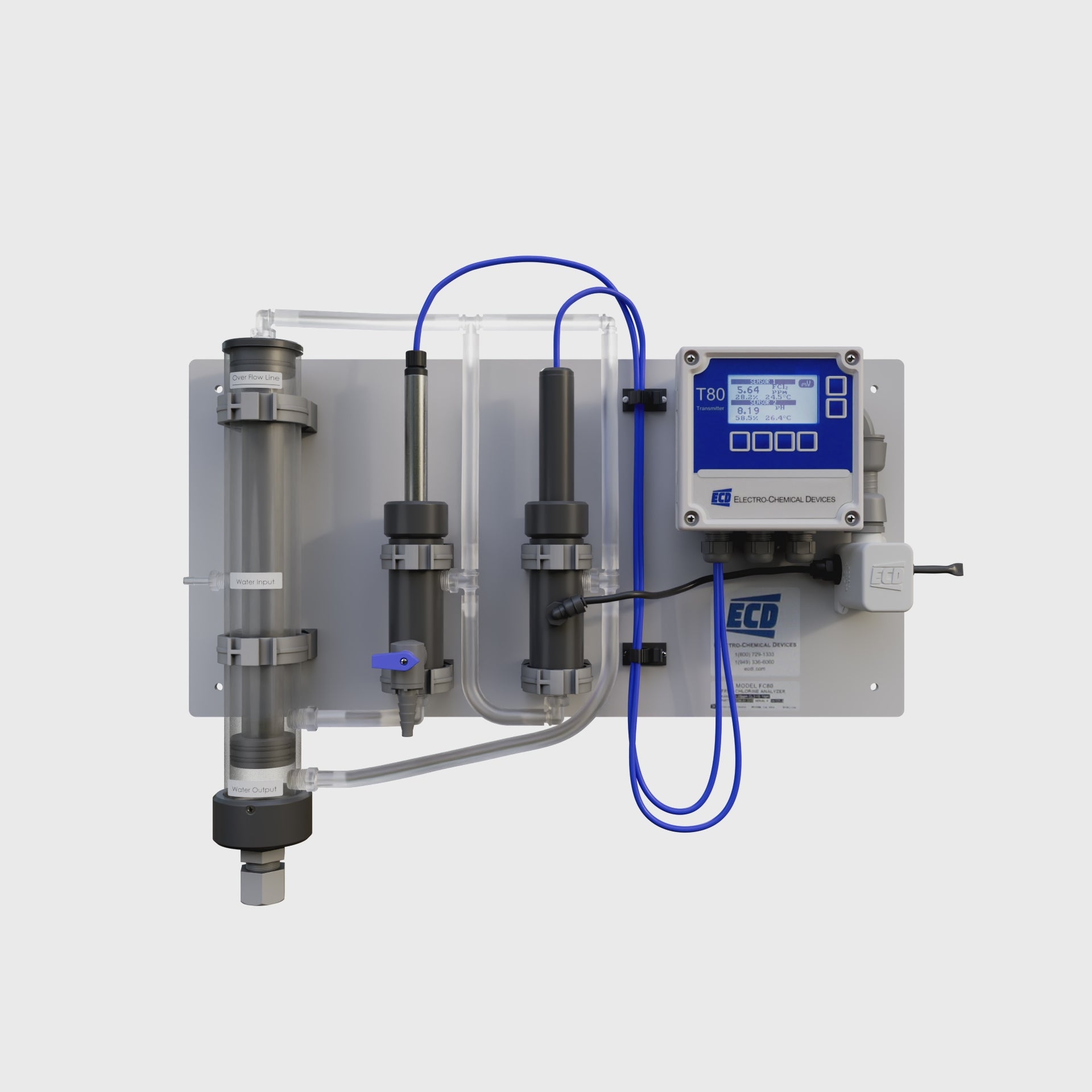

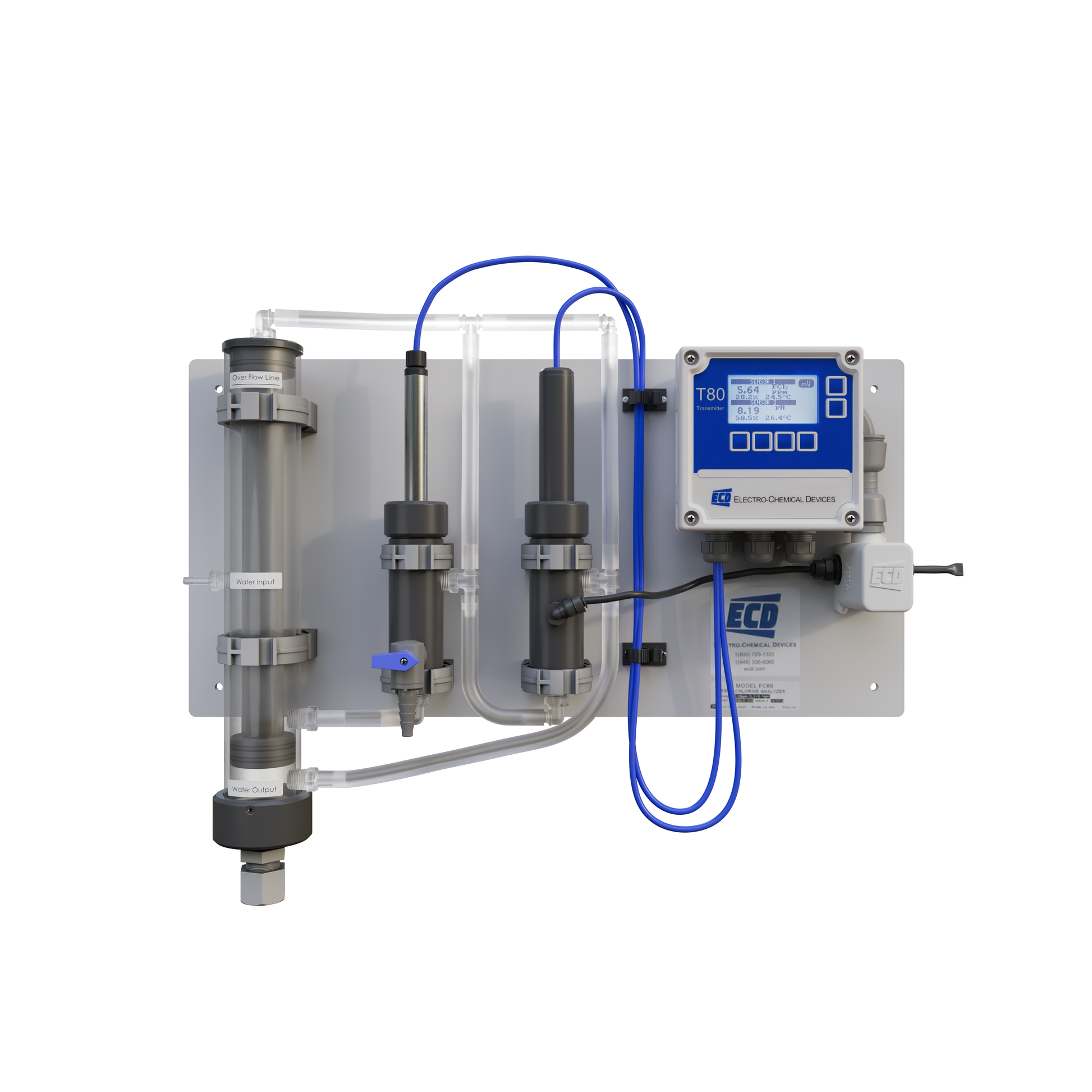

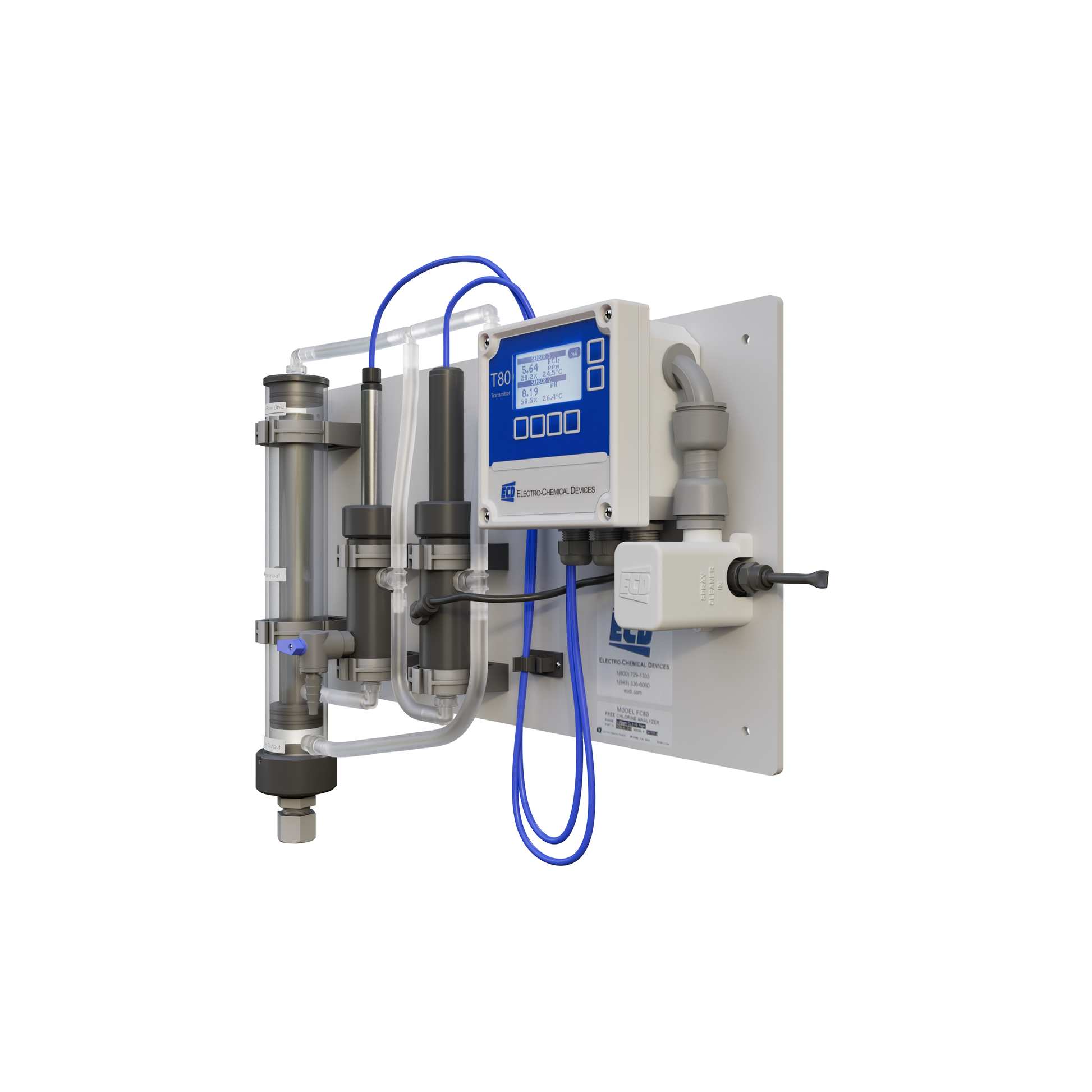

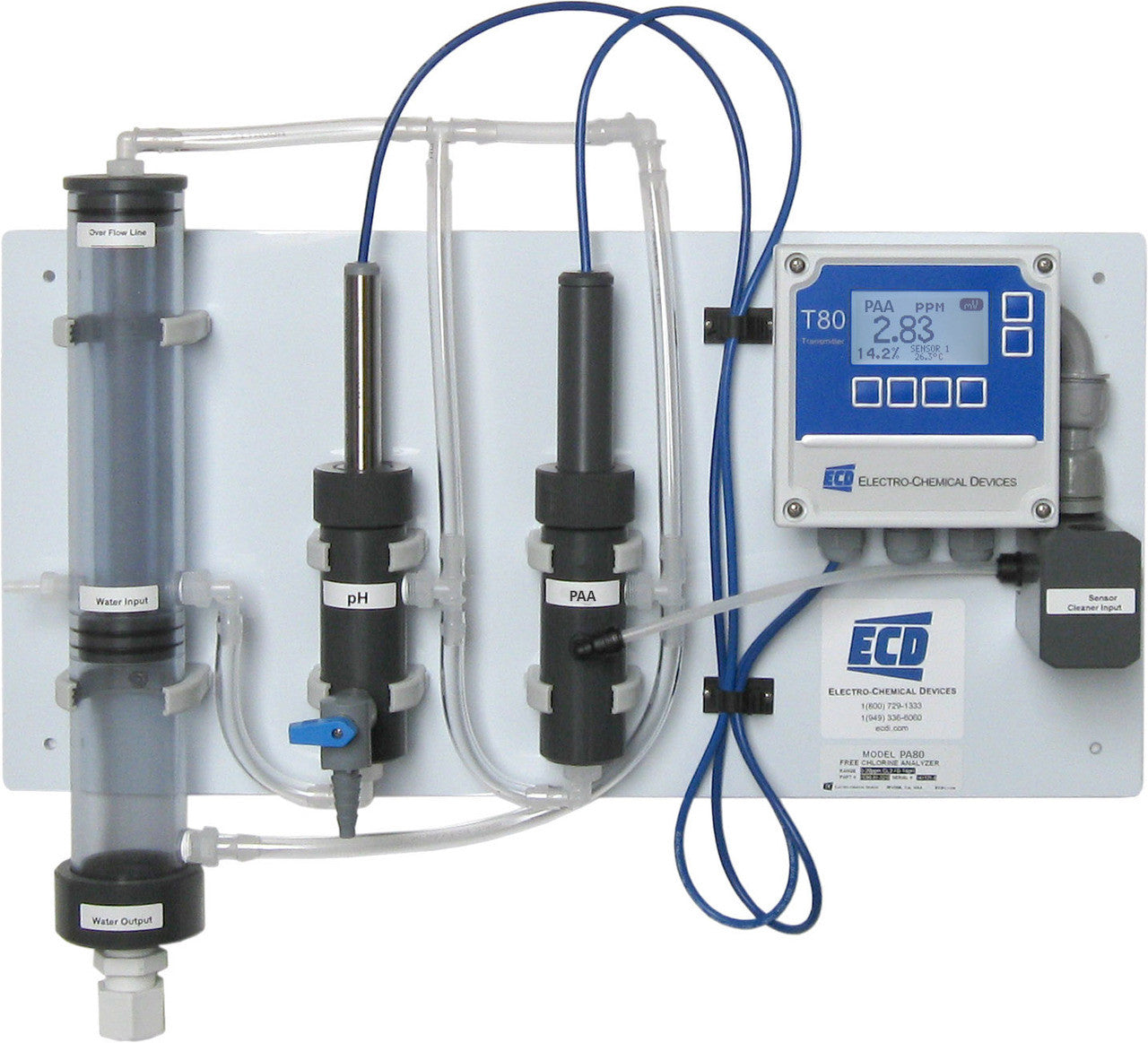

Reagentless Peracetic Acid Analyzer: The ECD PA80 Peracetic Acid Analyzer is a panel mounted, ready to use Peracetic Acid Analyzer. It is designed to monitor peracetic acid (PAA) in industrial cooling water, rinse water, municipal wastewater or other fresh water samples containing PAA in the range of 0-20 ppm and 0-200 ppm. The Peracetic Acid Sensor (PAS) is a three electrode amperometric sensor that measures all peracetic acid in the water. The PA80 Peracetic Acid Analyzer features a plug and play design that incorporates a flow control device, a pH sensor, a PAA sensor and the T80 transmitter are conveniently mounted on a PVC panel. Connect the sample and drain lines, connect the power and outputs and it is ready to use. The PA80 Peracetic Acid Analyzer is calibrated at the factory before shipment, additional Calibrations are accomplished by Lab comparison. The Model T80 transmitter is a 100-240 VAC line powered instrument. The standard configuration has two 4-20 mA outputs and a RS485 serial communication port with MODBUS®RTU. Three (3) SPDT, 1 form C, 250 VAC, 10 Amp resistive maximum, relays are user configurable as Hi/Lo alarms with expiration timers, Periodic Timers or as Fault alarms.
