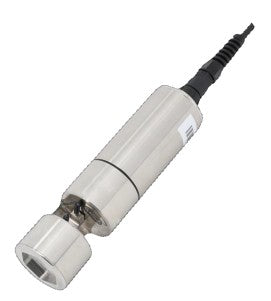

CLR80 Color Sensor

CLR80 Color Sensor

Determination of color intensity in municipal wastewater, industrial wastewater, rivers and surface water, drinking water, monitoring process liquids, and measurement of water quality for distribution or discharge.

Compact design and sturdy build:
The sensor has great responsiveness in a smaller volume. The probe can be easily installed directly in tanks, ponds, reservoirs or inside the dedicated circulating vessel. The titanium enclosure makes the sensor robust and durable even in the most challenging environments.
Low operation cost and automatic cleaning wiper minimizes the maintenance needed. There are no reagents or filing solutions required for operations.

Measurement principle:
The sensor measures the color intensity of a water sample through the photometric absorption principle.

Measured
Parameter Color intensity
Measuring Principle Absorption photometry
Measuring Range
0
500 Hazen
Analysis Frequency ≥ 1 s
Sample
Pressure
free vessel (probe
up to 3 bar)
Temperature:
0 50 C ( 32
122 °
Dimensions Ø 46mm, L 189 5 mm
Weight
Approx. 1 kg (2.2 lbs)
Body Material Titanium
Power Supply
Voltage: 5
12 VDC
Power consumption: max
0.5 VA
Output Modbus via RS485
Operating Temperature
0
50 °C (32 122 °
Installation Flow Cell or Immersion
Pole
Protection Grade
IP68
