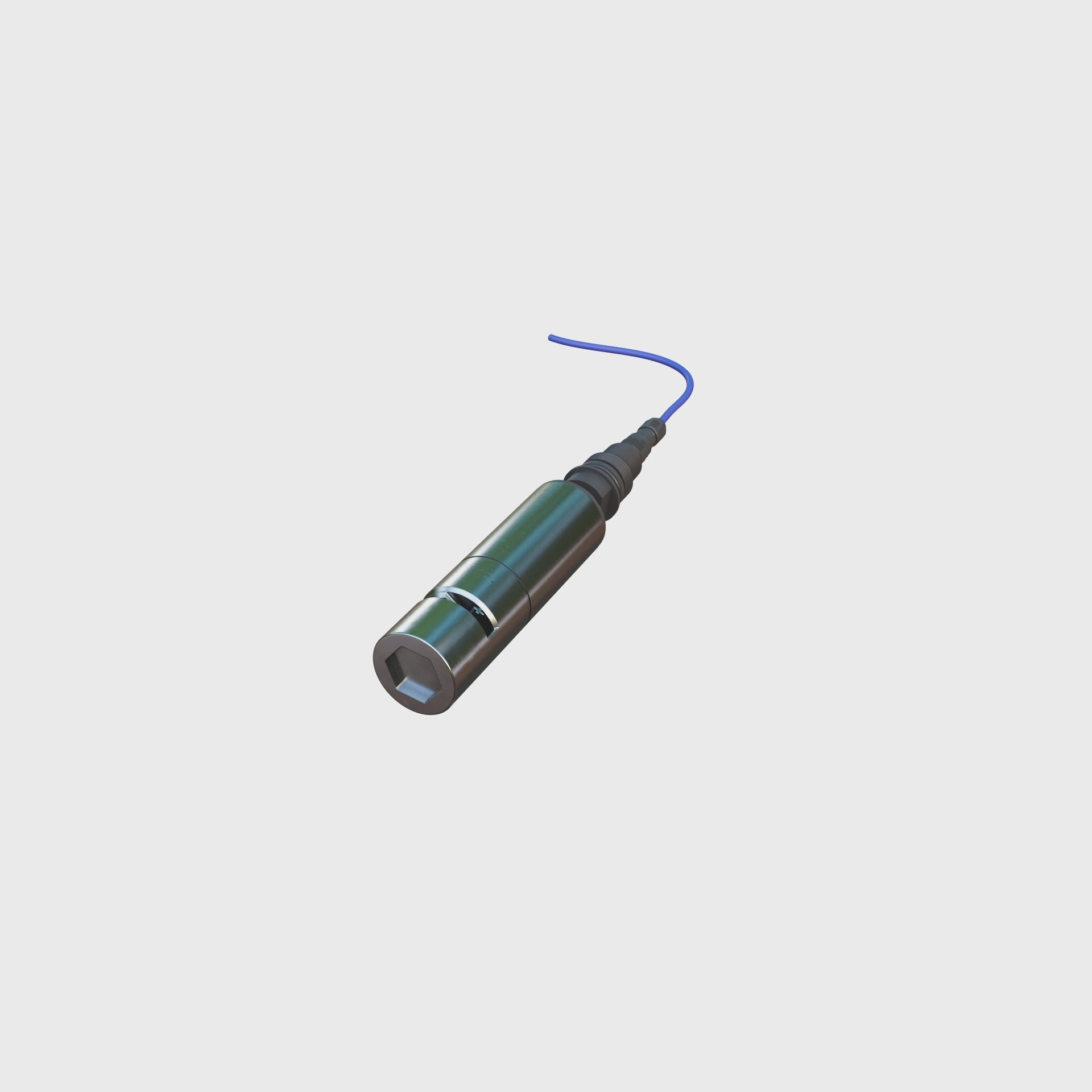

UV80 UV254nm COD, BOD, TOC, SAC Sensor

Many dissolved organic substances have spectral characteristics capable of absorbing UV
light at the wavelength of 254 nm. A UV source produces UV light radiation that passes
through the optical path. The receiver analyzes the UV pulses at two different wave lengths,
a measurement wavelength (254 nm) and a reference wavelength which is not influenced by the presence of organic compounds.

Measured Parameter UV 254nm, Abs254, COD eq, BOD eq, TOC eq
Measuring Principle UV 254nm absorption
Measuring Range Low Range Configuration -0.75 to 370 mg/L CODeq
High Range Configuration – 0.75 to 1000 mg/L CODeq
Mounting ¾” MNPT Threads at back of sensor
Operating Temperature 41 to 113oF (5 to 45oC)

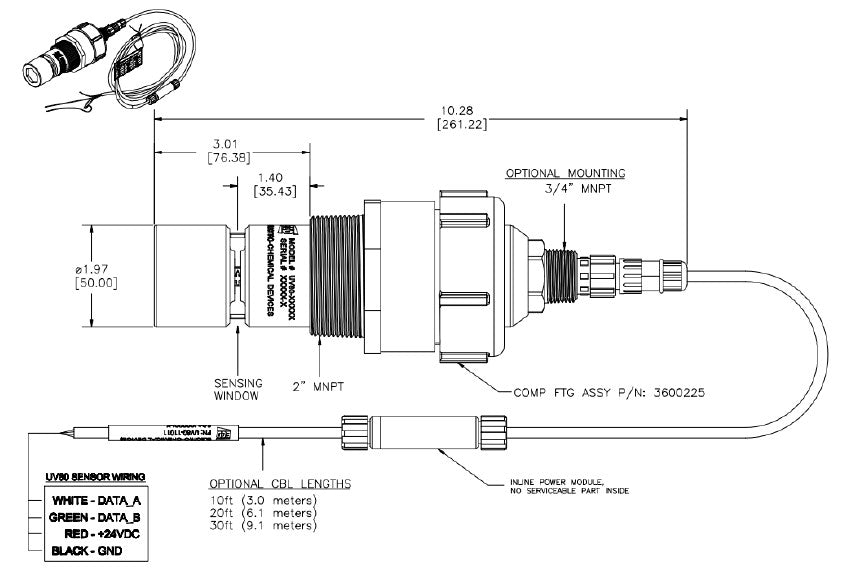

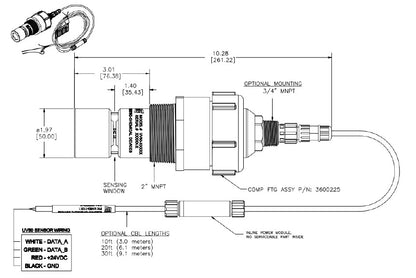

Dimensions 8.6 in H x 1.98 in Dia / 218 mm H x 50.2 mm Dia
Weight 1.7 lbs / 0.8 kg

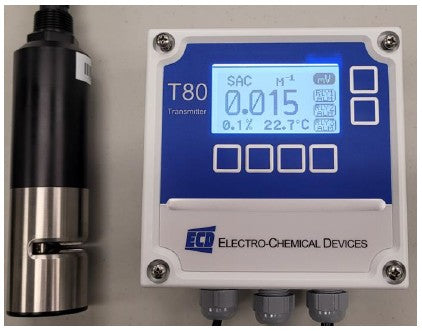

Power supply Internal from T80 Transmitter or LQ800 Controller
Direct DC power
Outputs / Digital Communication Modbus RTU RS485
Installation Flow Cell, Fast Loop Reservoir, or Direct Immersion
Standpipe
Ingress Protection IP68
